EME with its in-house qualified, trained and skilled circuit design engineers adopts schematic design with IEEE standards for symbol creation, component management, library management and analysis for FMECA, MTBR, Reliability Prediction (Parts Stress), Derating, Tolerance, Timing, Redundancy analysis, IPC standards for PCB design and development.

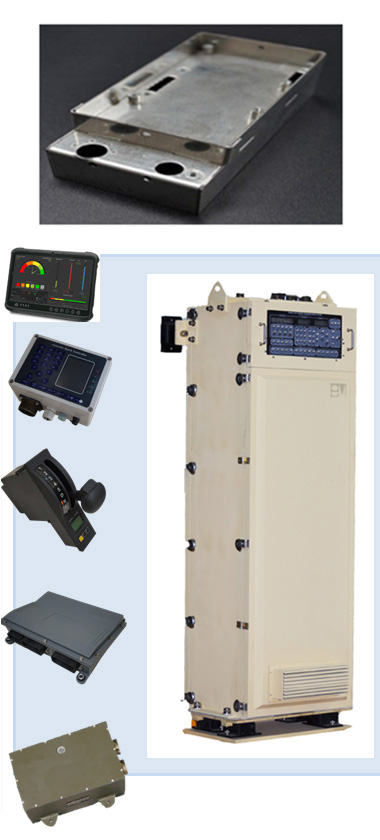

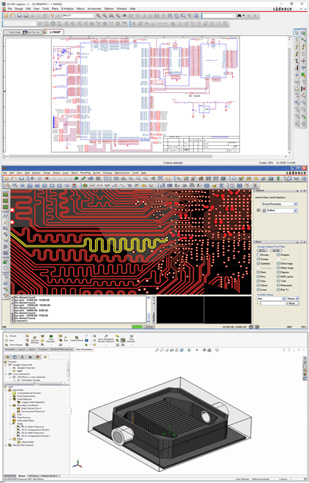

The designs are supported for Signal Integrity, Noise Analysis, thermal analysis etc., so as to qualify for different standards as per certification requirement. The designs are carried out using PCB design and mechanical design software from Cadence, CadStar, AutoCAD and Solid works which provides an integrated environment between Schematic Capture, PCB Design and Enclosure design.

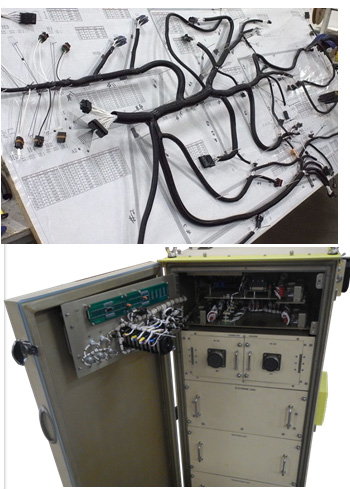

EME adopts systematic approach in every stage of board-bring up and box build cycles. Tightly integrated PCB design software assists in Small Footprint Designs, foot print for Class 2 & Class 3, High Density Interconnect (HDI), Multi layered, Blind & buried micro via, Metal–core and Metal Clad PCB design, Impedance boards, Rigid, Flex, Rigid-Flex-Rigid design, Signal integrity and Thermal analysis, 3D design output for Mechanical validation, Stress Simulation, Vibration, Shock, Bump tests.
